Characteristics
|
1.1
|
Model
|
|

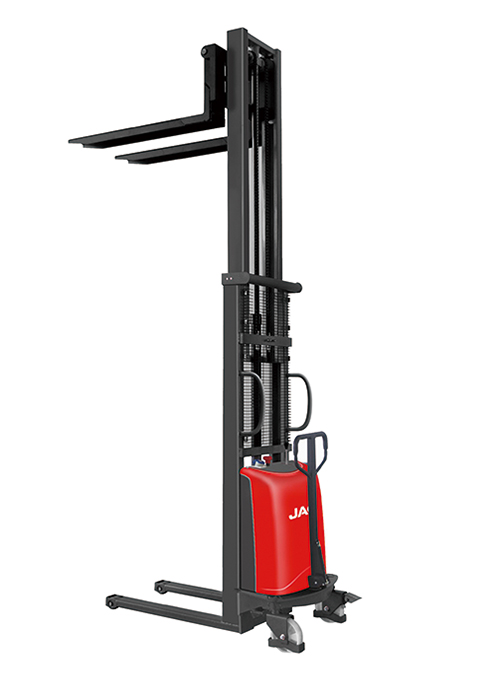

CDD20B
|
|
1.2
|
Power
unit
|
|
Semi-electric
|
|
1.3
|
Operation
|
|
Hand
|
|
1.4
|
Rated
traction weight
|
kg
|
2000
|
|
1.5
|
Load
center distance
|
mm
|
450
|
|
1.6
|
Axle
centre to fork face
|
mm
|
705
|
700
|
|
|
|
1.7
|
Wheel base
|
mm
|
1190
|
|
1.8
|
Service
Weight
|
kg
|
325
|
380
|
455
|
475
|
|
Wheels/Tyres
|
3.1
|
Tires
|
|
Polyurethane
|
|
3.2
|
Driving
wheel size/number
|
Φ×w(mm)
|
Φ180×50
|
|
3.3
|
Front
wheel size/number
|
Φ×w(mm)
|
Φ74×70
|
|
3.4
|
Balance
wheel size/number
|
Φ×w(mm)
|
Φ180×50
|
|
3.5
|
Wheels,
number front/rear (x = driven)
|
|
1，1/,2
|
|
3.6
|
Drive
end
|
mm
|
648
|
|
3.7
|
Track
width
|
mm
|
390/490
|
|
Dimensions
|
4.1
|
Lowered
mast height
|
mm
|
2077
|
1577
|
1827
|
2077
|
|
4.2
|
Lifting
height
|
mm
|
1600
|
2000
|
2500
|
3000
|
|
4.3
|
The
max. lifting height
|
mm
|
2077
|
2567
|
3067
|
3567
|
|
4.4
|
Load
capacity on Max. height
|
kg
|
2000
|
1600
|
1400
|
1100
|
|
4.5
|
Lowered
fork height
|
mm
|
85
|
|
4.6
|
Overalllength
|
mm
|
1600/1800
|
|
4.7
|
Length
to fork face
|
mm
|
700
|
|
4.8
|
Overall
width
|
mm
|
760/964
|
|
4.9
|
Fork
dimensions
|
s/e/l
(mm)
|
60/150/900（1100）
|
|
4.10
|
Width
of forks
|
mm
|
550/640
|
|
4.11
|
Min.Ground
clearance
|
mm
|
32
|
|
4.12
|
Aisle
width with pallet 1000 x 1200 across forks
|
mm
|
2250
|
|
4.13
|
Aisle
width with pallet 800 x 1200 along forks
|
mm
|
2240
|
|
4.14
|
Min.Turning
radius
|
mm
|
1350
|
|
Performance
|
5.1
|
Lifting
speed, with/without load
|
mm/s
|
60/145
|
|
5.2
|
Lowering
speed, with/without load
|
mm/s
|
60/100
|
|
5.3
|
Service
brake
|
|
Mechanical
|
|
Drive
|
6.1
|
Lift
motor rating at S3 15%
|
kW
|
1.6
|
|
6.2
|
Battery
voltage/rated capacity
|
V/Ah
|
12/120
|
|
6.3
|
Battery
weight (± 5%)
|
kg
|
36
|
|
Others
|
7.1
|
Noise
level at operator‘s ear
|
dB(A)
|
≤70
|
